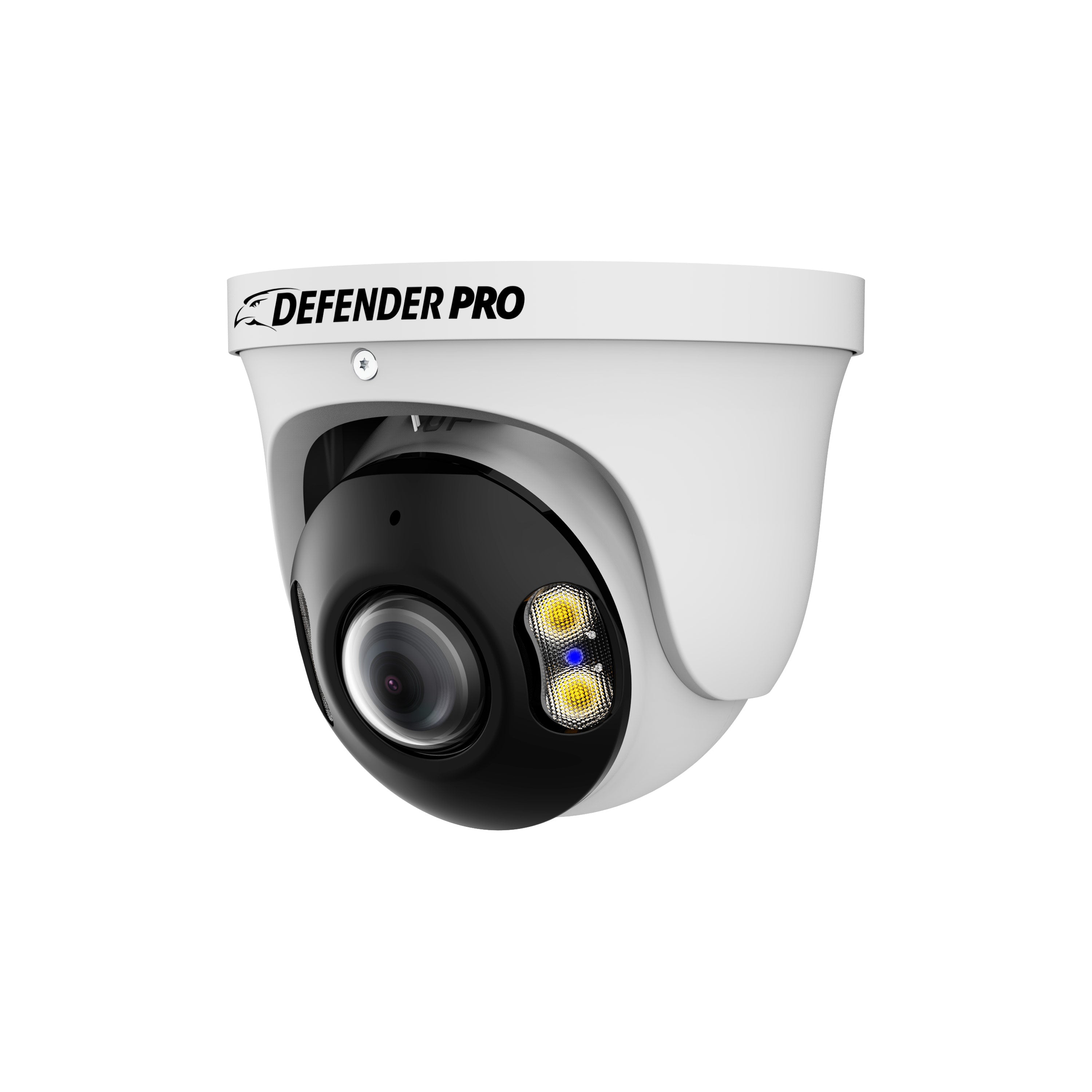

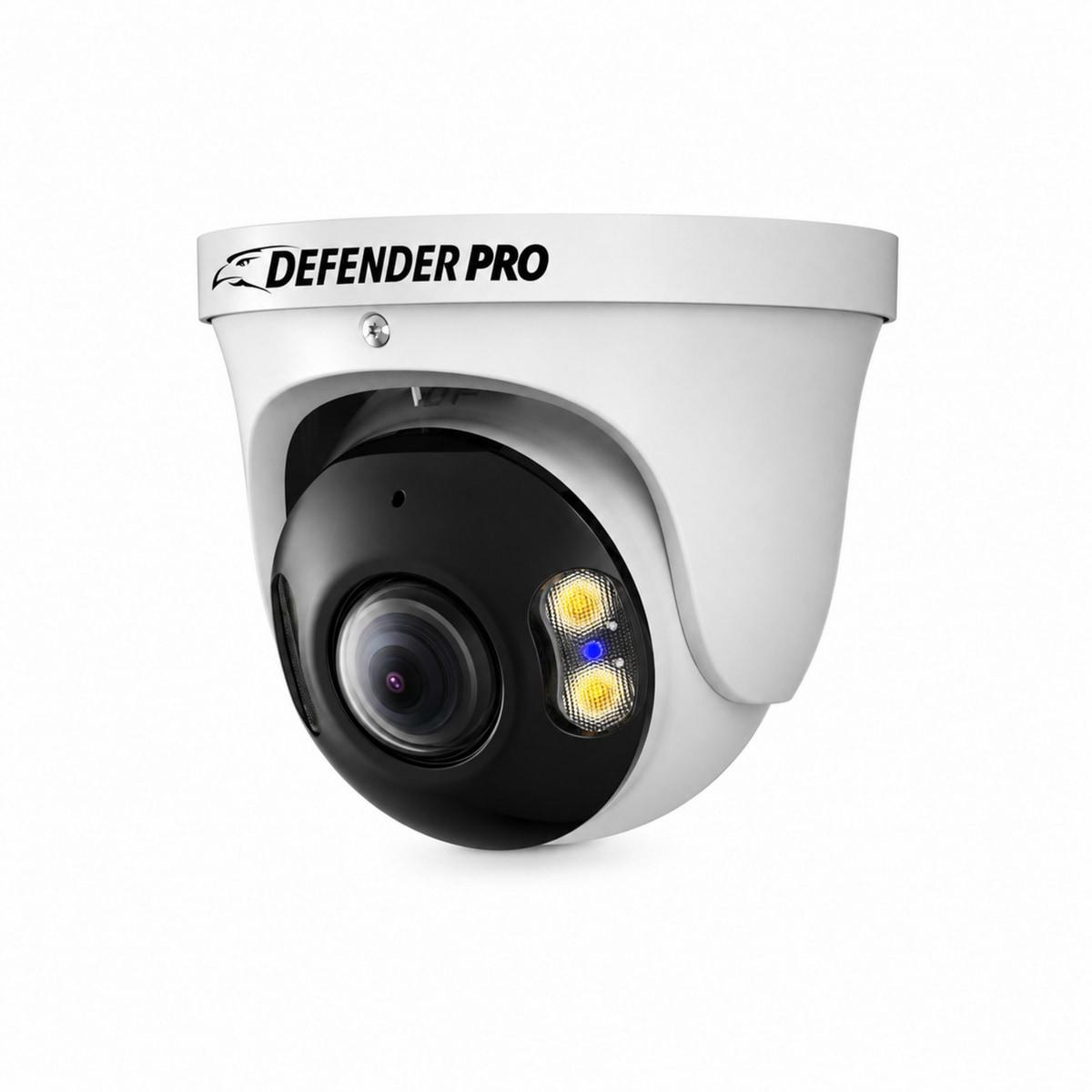

Defender Pro 5MP AI POWERED 180° Wide-Angle PoE Turret Camera

CAMERA

Image Sensor: 1/2.7” Progressive Scan CMOS

Max. Resolution: 5MP, 2880(H) × 1620(V)

Electronic Shutter: Auto/Manual, 1/5 to 1/20,000s

Min. illumination: Color: 0.01 Lux @ (F1.6, AGC ON), 0 Lux with light on

Day & Night: Auto (ICR)

Angle Adjustment: Pan: 0˚ to 360˚, Tilt: 0˚ to 90˚, Rotation: 0˚ to 360˚

LENS

Lens Type: Fixed-focal lens

Iris: Fixed Iris

Focal Length: 1.6 mm

F Number: F2.0

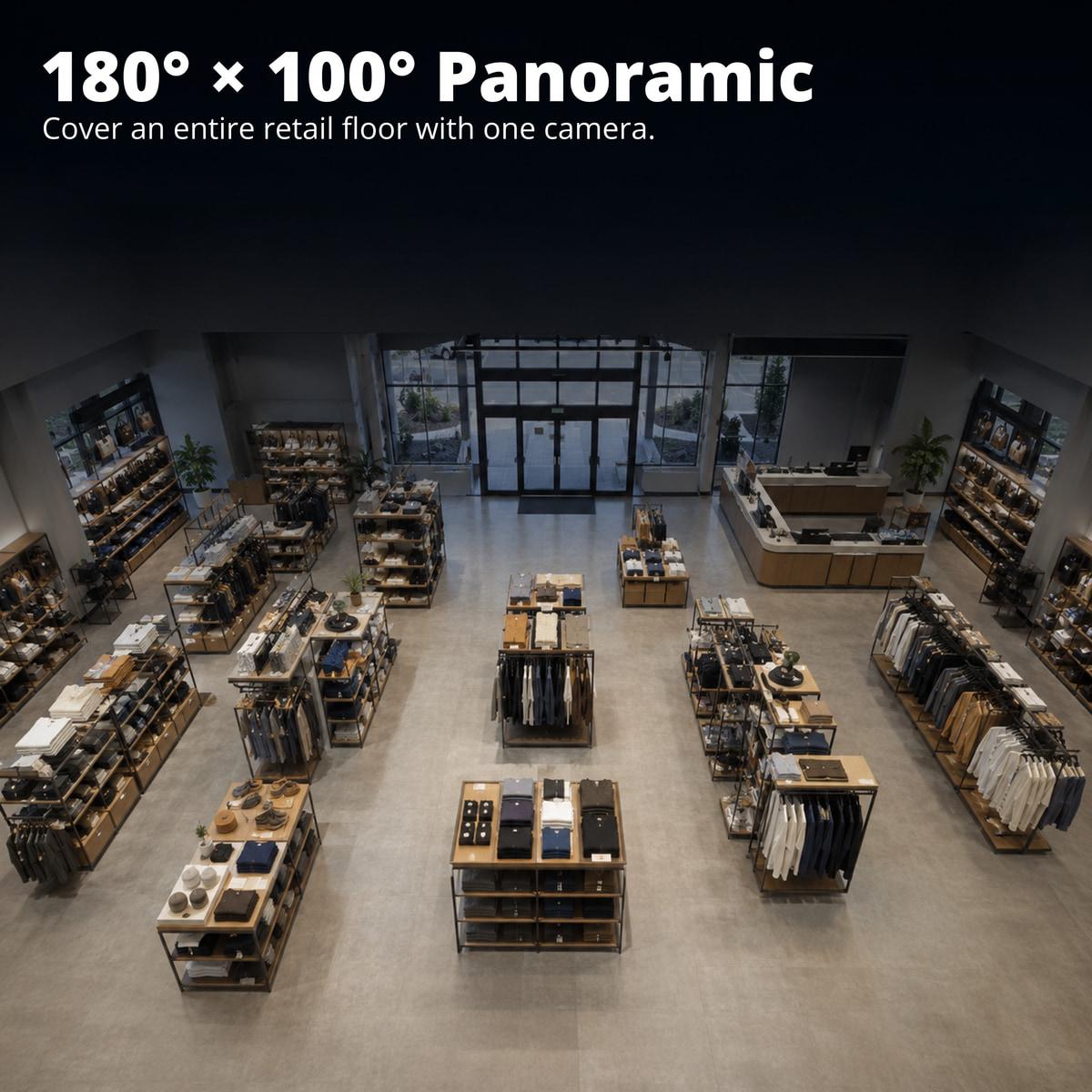

Angle of View: H: 180°, V: 100°

ILLUMINATOR

Illuminator Type: IR, Warm Light

Illumination Distance: IR distance up to 25 m (80.02 ft)
Warm light distance up to 25 m (80.02 ft)

Illumination Control: IR mode, White mode, Intelligent mode, None

IR Wavelength: 850 nm

INTELLIGENT ANALYTICS

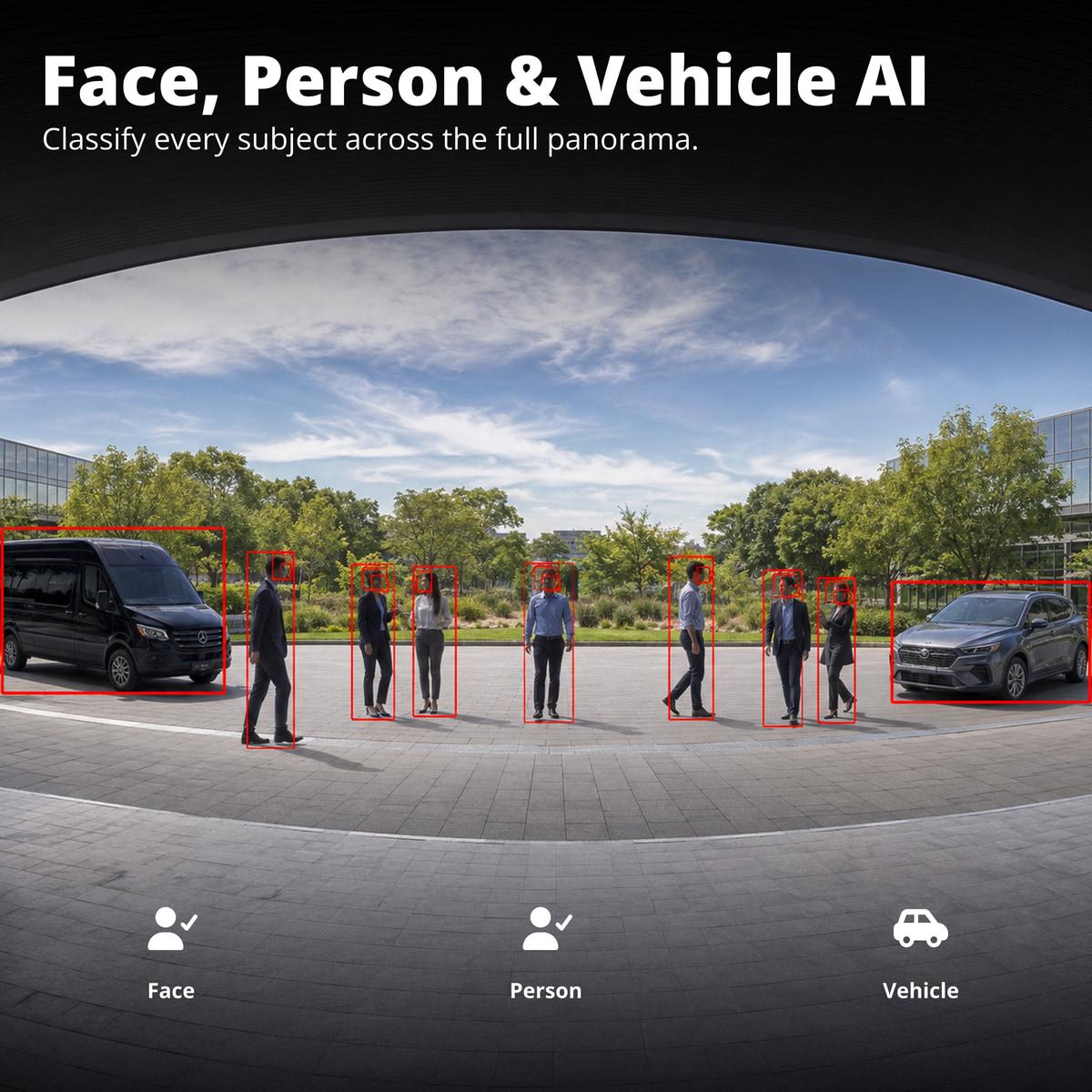

Multi-Object Detection: Supports face, human, vehicle detection and capture.
Supports multiple frame modes: Full Frame, Four-corner Frame, and Mosaic.

Intelligent Analysis: Intrusion, Single line crossing, Double line crossing, Loitering, Wrong-way, and Smart motion detection. Support alarm triggering by specified target types (human and vehicle).

People Counting: Support

Heat Map: Support

VIDEO & AUDIO

Streaming Capability: 2 Streams

Main Stream: 2880×1620, 2560×1440, 2304×1296, 1920×1080, 1280×720 @25/30fps

Sub Stream: D1, VGA, CIF @ 25/30fps

Bit Rate Control: CBR/VBR

Bit Rate: Stream1: 200 kbps to 12 Mbps
Stream2: 100 kbps to 6 Mbps

Smart Encoder: Support

Region of Interest (ROI): Support

Audio Compression: G.711 A-law, G.711 μ-law, RAM PCM

Audio Bit Rate: 64 Kbps (G.711), 128 Kbps (RAW_PCM)


Image Adjustment: Brightness, Sharpness, Contrast, Saturation adjustable

Scene Setting: Indoor, Outdoor, Mirror, Corridor Mode

Exposure Mode: Auto, Manual, Shutter priority

White Balance: Auto, Tungsten, Fluorescent, Daylight, Shadow, Manual

Day/Night Setting: Auto, Day, Night, Timer

Noise Reduction: 2D/3D DNR

Image Enhancement: WDR, HLC, BLC, Defog

Privacy Masking: 4 areas

EVENT

Alarm Triggers: IVS, Motion detection, Network alarm, Disk alarm, Day/Night switch alarm, Abnormal sound detection

Events Actions: Alarm record, FTP upload, SMTP upload, Audible alarm output, White light alarm output, Red and blue light alarm

NETWORK

Protocols: IPv4/IPv6, HTTP/HTTPS, DNS, DDNS, DHCP, PPPoE, RTSP/ RTCP/RTP, TCP/UDP, NTP, ARP, UPnP, FTP, SMTP, QoS, ICMP, IGMP, SMTP, 802.1x, SNMP, Multicast

Interoperability: ONVIF (Profile S/T/G/M), SDK, CGI

Max Concurrent Streams: 10 channels

User/Host Level: 32+ users, 3 levels: Administrator, Operator, Media user

Security: IP address filter, HTTPS, Illegal login lock, IEEE 802.1x

Web Viewer: <IE11, Chrome, Firefox, Microsoft Edge

INTERFACE

Network Interface: 1 Ethernet (10/100 Base-T) RJ-45 Connector

Built-in Microphone: Support

Built-in Speaker: Support

Alarm Interface: 1ch Input, 1ch Output

SD Card Slot: Built-in, up to 1TB

Reset Button: Support

GENERAL

Language: English, Chinese, Traditional Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian, Japanese, Korean. Default: English

Power Supply: 12 VDC (-15% to +25%) / PoE (802.3af)

Operating Temperature: -30°C to 60°C (-22°F to 140°F )

Operating Humidity: Less than 90% RH

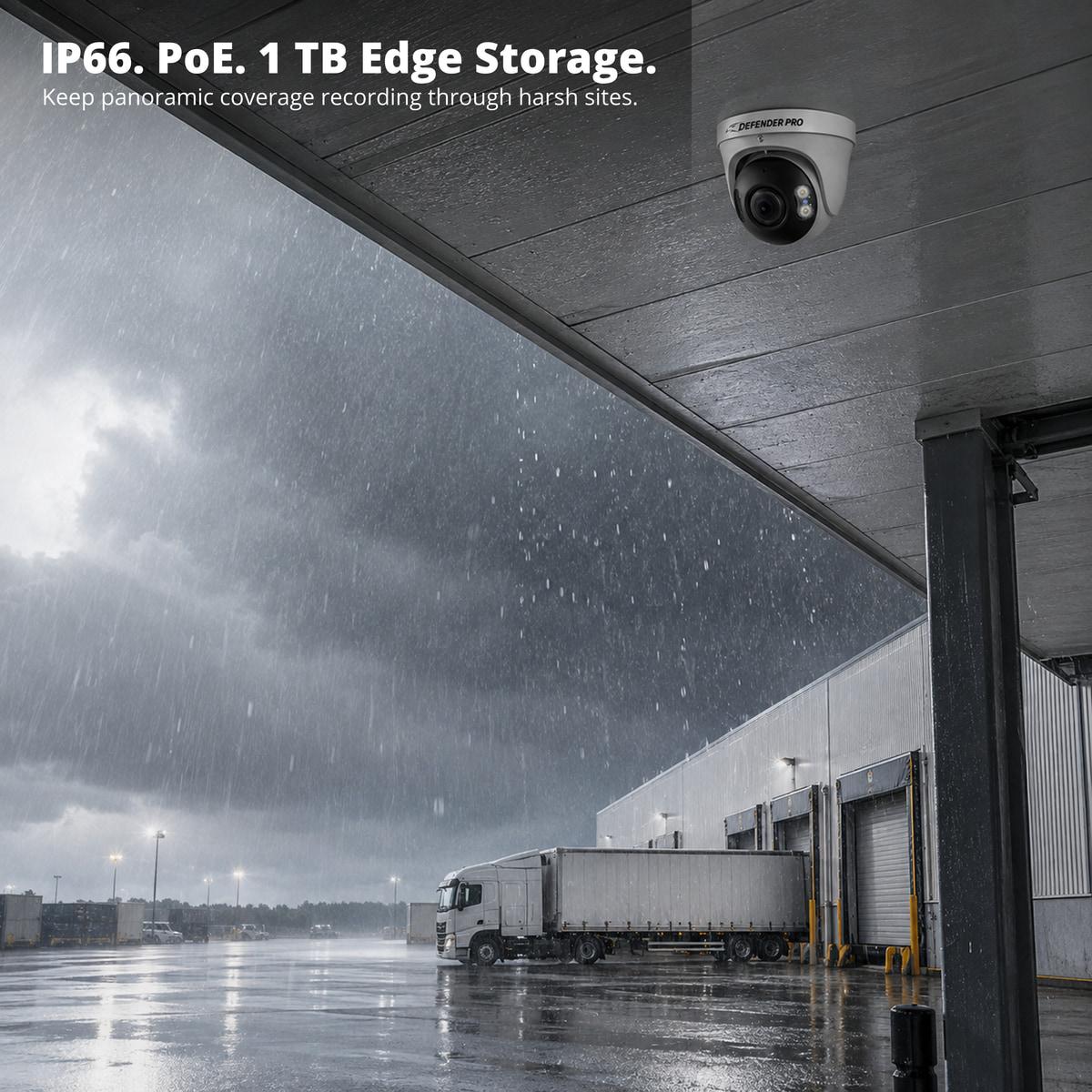

Ingress Protection: IP66

Certifications: CE-EMC
- EN 55032, EN IEC 61000-6-4, EN IEC 61000-3-2, EN 61000-3-3, EN 55035, EN 50130-4
FCC 47 CFR Part 15 Subpart B

Dimensions: Φ110 × 93.9 mm
