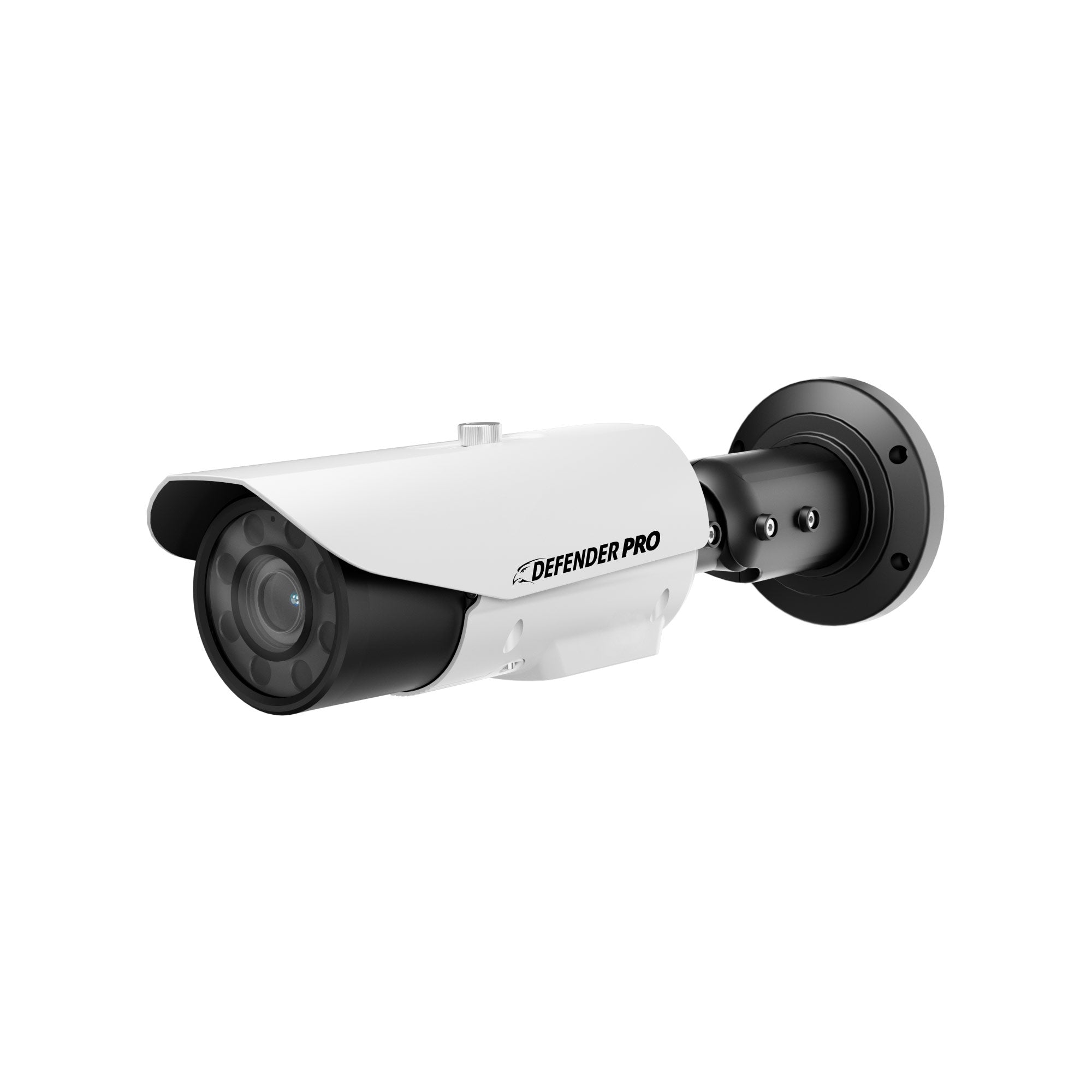

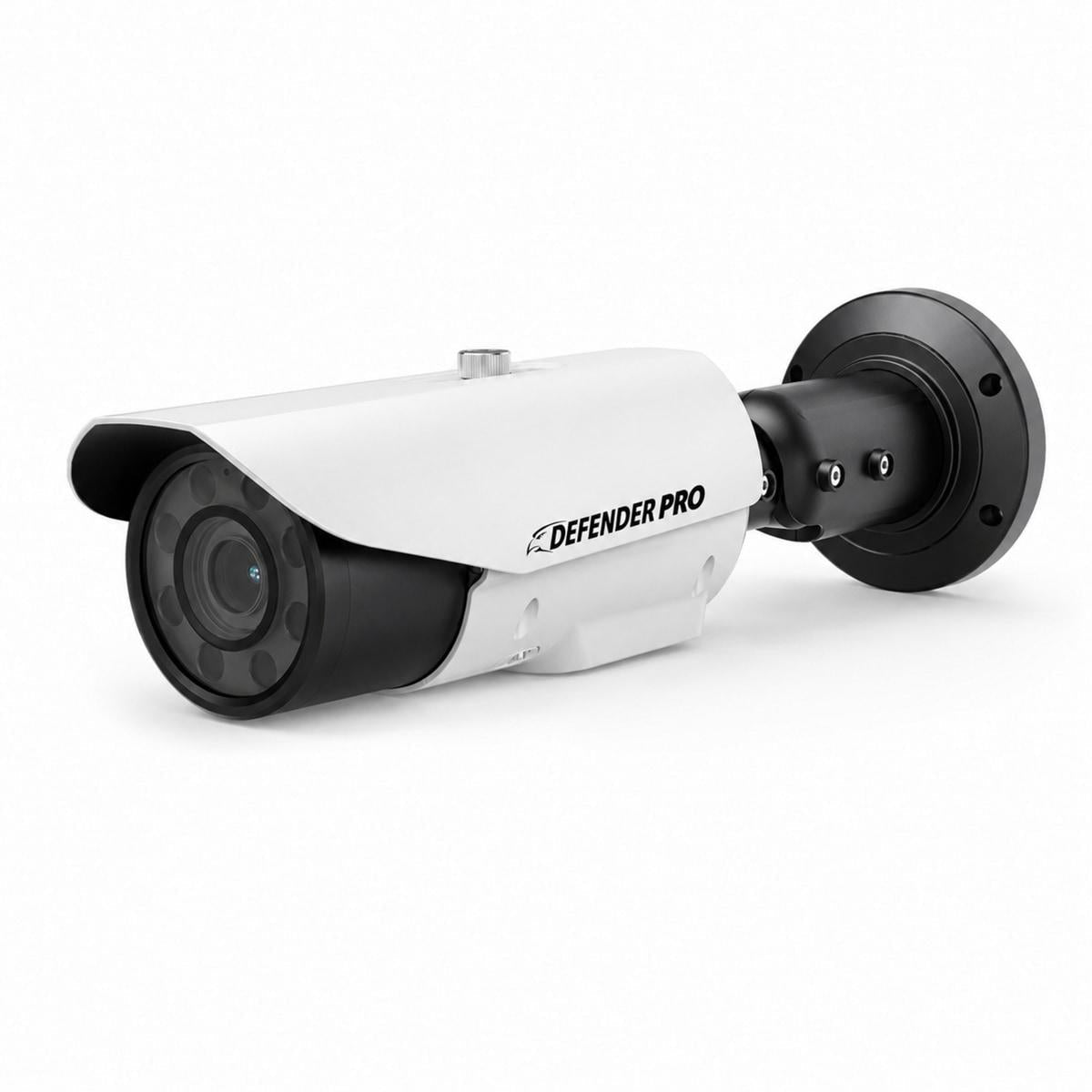

Defender Pro 4MP AI POWERED ANPR POE Bullet Camera

CAMERA

Image Sensor: 1/1.8” Progressive Scan CMOS

Max. Resolution: 4MP, 2688(H) × 1520(V)

Electronic Shutter: Auto/Manual, 1/5 to 1/100,000 s

Min. illumination: Color: 0.0025 Lux @ (F1.2, AGC ON), B/W: 0 Lux with IR

Day & Night: IR cut filter

S/N Ratio: 55dB

Wide Dynamic Range: True WDR

Angle Adjustment: Pan: 0˚ to 360˚, Tilt: 0˚ to 90˚, Rotation: 0˚ to 360˚

LENS

Lens Type: Motorized lens, motorized focus

Iris: Auto Iris

Focal Length: 8 to 32 mm, 10 to 50 mm optional

Max. Aperture: F1.6 / F1.3 to F1.4

Field of View (FOV): 8 to 32 mm: - H: 41.1° to 14°, V: 23° to 7.9°
10 to 50 mm: - H: 42.5° to 11.1°, V: 24.3° to 6.3°

ILLUMINATOR

Supplement Light: IR

Light Control: Auto/Manual

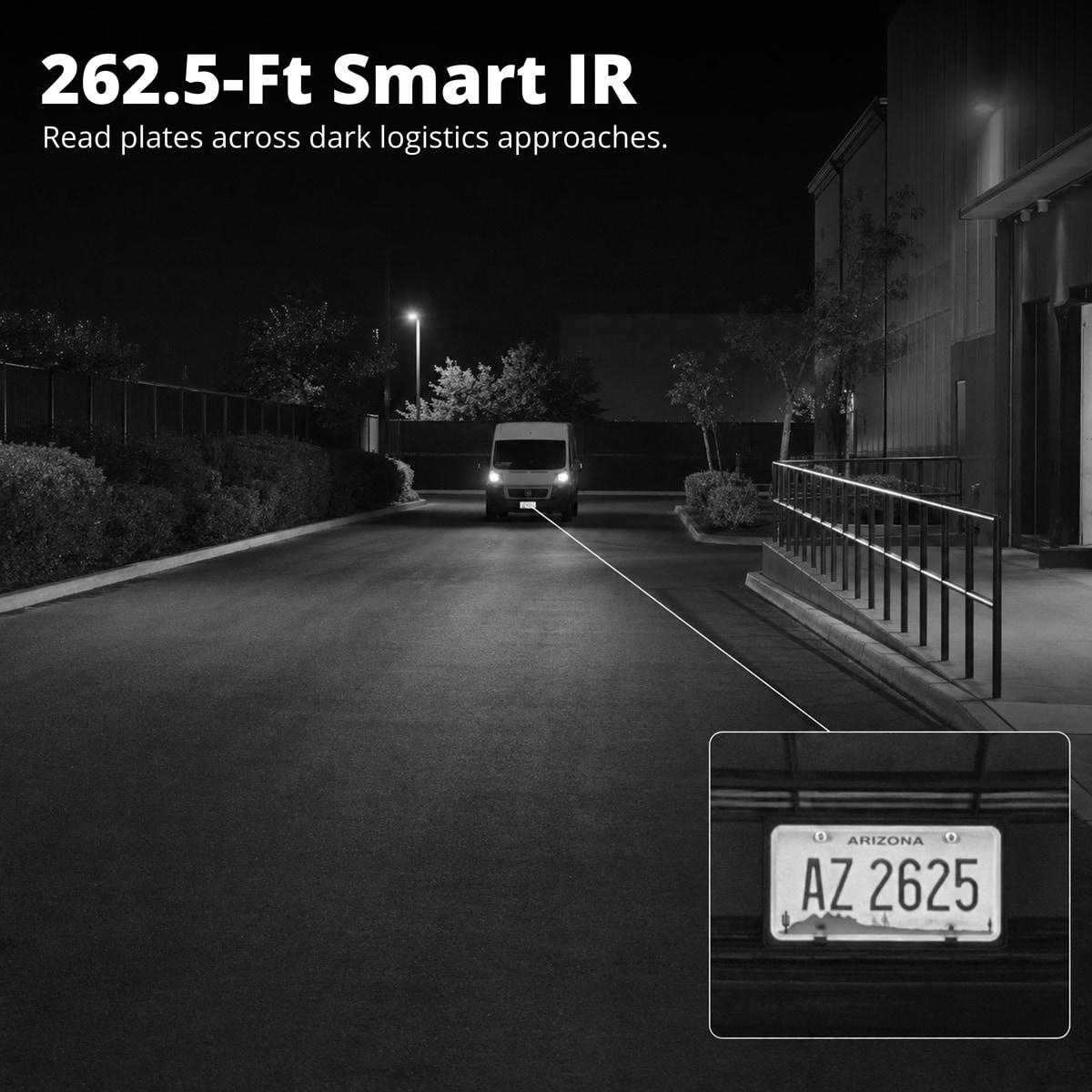

Illumination Distance: 8 to 32 mm: - Up to 80 m (262.5 ft)
10 to 50 mm: - Up to 120 m (393.7 ft)

IR Wavelength: 850 nm

LPR

Vehicle Speed: Up to 120 km/h

Country Region Supported: Middle East: Oman, Saudi Arabia,
Africa: South Africa
Asia-Pacific: China, China Taiwan, Thailand, Vietnam, India, Indonesia
Malaysia, Singapore
Europe: Italy, Netherlands
America: Canada, USA
(Customizable others)

White/Black List: Up to 4,000 records

LPR Smart Search: Support

INTELLIGENT ANALYTICS

Intelligent Analysis: Intrusion, Single line crossing, Double line crossing, Wrong-way detection, and Smart motion detection.
Support alarm triggering by specified target types (vehicle).

AUDIO & VIDEO

Streaming Capability: 3 Streams

Stream/Frame Rate: Stream1: 2688×1520, 1920×1080, 1280×720 @50/60 fps
Stream2: D1, VGA, CIF @ 25/30 fps
Stream3: VGA, CIF, QVGA @ 25/30 fps

Bit Rate Control: CBR/VBR

Bit Rate: Stream1: 200 kbps to 16 Mbps
Stream2: 100 kbps to 6 Mbps
Stream3: 100 kbps to 3 Mbps

Region of Interest: Off/On (8 areas, Rectangle)

Smart Encode: Support

Audio Compression: G.711 A-law, G.711 μ-law, RAM PCM

Audio Bit Rate: 64 Kbps (G.711), 128 Kbps (RAW_PCM)


Image Adjustment: Brightness, Sharpness, Contrast, Saturation adjustable

Scene Mode: Indoor, Outdoor, LPR, Mirror, Corridor mode

Exposure Mode: Auto, Manual, Shutter priority

White Balance: Auto, Tungsten, Fluorescent, Daylight, Shadow, Manual

Day/Night Setting: Auto, Day, Night, Timer

Noise Reduction: 2D/3D DNR

Image Enhancement: HLC, BLC, Defog, WDR

Privacy Masking: 4 areas

EVENT

Alarm Triggers: IVS, Motion detection, Alarm input, Network alarm, Disk alarm, Day/Night switch alarm, Abnormal sound detection

Event Actions: Alarm record, Alarm output, Wiegand output, FTP upload, SMTP upload, Audible alarm output

NETWORK

Protocols: IPv4/IPv6, HTTP/HTTPS, DNS, DDNS, DHCP, PPPoE, RTSP/ RTCP/RTP, TCP/UDP, NTP, ARP, UPnP, FTP, SMTP, QoS, ICMP, IGMP, SMTP, 802.1x, SNMP, Multicast

Interoperability: ONVIF (Profile S/T/G/M), SDK, CGI

Max Concurrent Streams: 10 channels

User/Host Level: 32+ users, 3 levels: Administrator, Operator, Media user

Security: IP address filter, encrypted HTTPS, Illegal login lock, IEEE 802.1x

Web Viewer: IE11, Chrome, Firefox, Microsoft Edge

INTERFACE

Network Interface: 1 Ethernet (10/100 Base-T) RJ-45 Connector

Built-in Microphone: Support

Built-in Speaker: Support

Audio Interface: 1ch Input, 1ch Output

Alarm Interface: 1ch Input, 2ch Output

RS-485: 1 RS-485

Wiegand Interface: 1 Wiegand (26-bit, SHA-1 26-bit, 34-bit, and NEWG 72-bit)

SD Card Slot: Built-in, up to 1 TB

Reset Button: Support

GENERAL

Language: English, Chinese, Traditional Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian, Japanese, Korean. Default: English

Power Supply: 12 VDC (-15% to +25%) / PoE (802.3af)

Power Consumption: Max 13.2 W

Operating Temperature: -40°C to 60°C (-40°F to 140°F)

Operating Humidity: Less than 90% RH

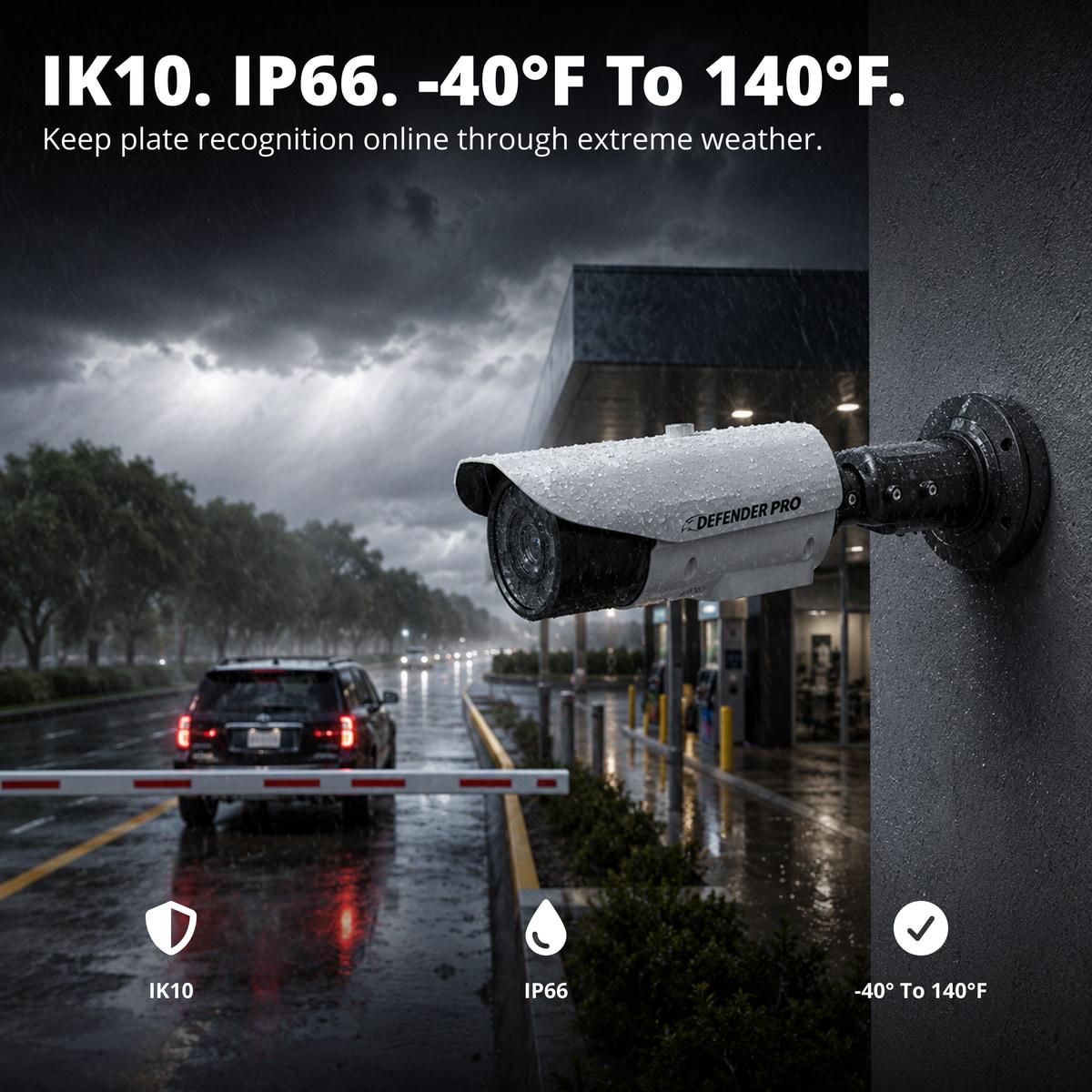

Ingress Protection: IP66, IK10

Certifications: CE-EMC
- EN 55032, EN IEC 61000-6-4, EN IEC 61000-3-2, EN 61000-3-3, EN 55035, EN 50130-4
FCC 47 CFR Part 15 Subpart B

Casing: Metal

Dimensions: φ110 × 356.3 mm (φ4.33 × 14.03 inch)

Net Weight: 1.5 kg (3.31 lb)
